Adam Hall Defender Compact - 7 Channels

Overlaid cable protector with 7 Channels (85100), for light-to-medium-duty uses

Made in Germany┋Dimensions: 80 x 43 x 4 cm┋Weight: 3.5 kg┋7 Channels

The Defender® COMPACT drop-over cable protector 85100 is a durable light-duty solution to guard cable lines and prevent tripping hazards.

Featuring a ribbed surface for excellent traction and integrated dovetail connectors, the Adam Hall Defender 85100 is suitable for pedestrian traffic in offices, shopping malls, conference facilities, trade shows and markets as well as stage and studio applications.

If a high-duty guard is required, this drop-over 85100 can be combined with the base 85103.

User Manual - Certificate

---

Features:

• Non-slip, overlaid cable protector made of black, recyclable polyurethane
• Fire-resistant, resistant to oil, acids, solvents, and petrol
• Reliable protection for cables and personnel for indoor and outdoor use
• Expandable with Base 85103 for higher loads such as forklifts and lifting trucks
• 7-channels: 1 channel 28 x 30 mm, 2 channels each 28 x 23 mm, 28 x 27 mm and 28 x 29 mm
• Not suitable for vehicular traffic

Specifications - 85100 :

• Type: 7 Channels
• No. of integrated connectors: 2

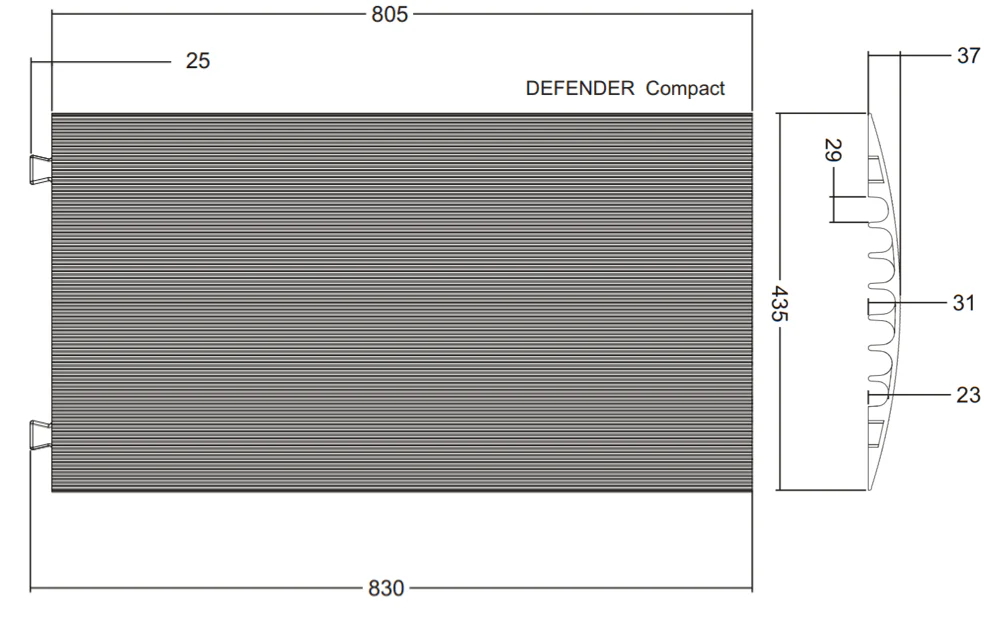

• Dimensions: 435 (W) x 806(L) x 37(H) mm
• Channel 1: 28(W)x23(H) mm
• Channel 2: 28(W)x27(H) mm
• Channel 3: 28(W)x29(H) mm
• Channel 4: 28(W)x30(H) mm
• Channel 5: 28(W)x29(H) mm
• Channel 6: 28(W)x27(H) mm
• Channel 7: 28(W)x23(H) mm
• Material: Polyurethane
• Max. load: for pedestrians and bicycles
• Hardness range: 88 Shore ± 4 Shore
• Fire protection class: B2
• Temperature range: -30 to +60 °C
• Weight: 3,5 kg
• Special feature: DEKRA-certified
