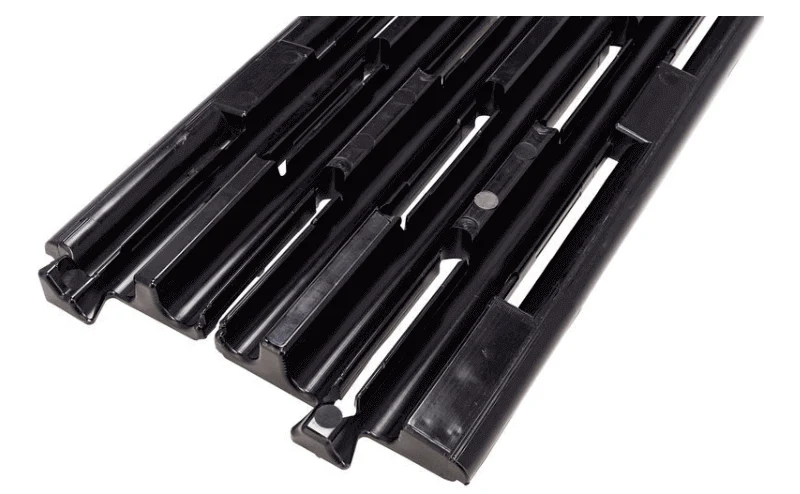

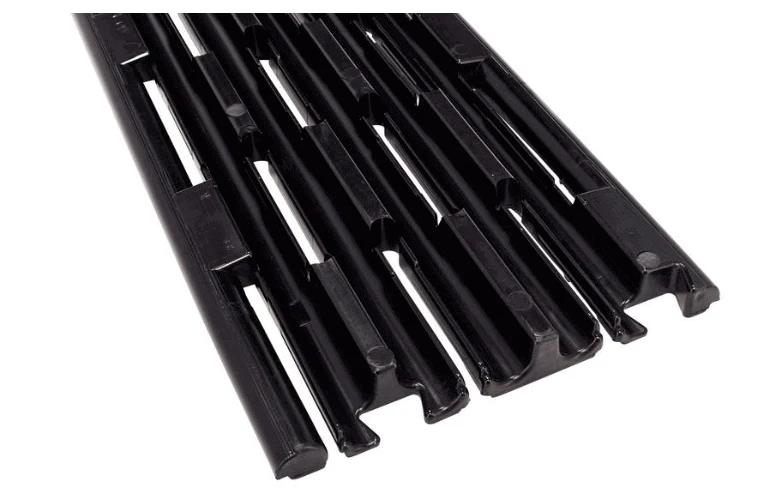

Adam Hall Defender Compact Base - 5 Channels

Defender® Compact Base 85103 with 5 channels, for heavy-duty uses

Made in Germany┋Dimensions: 80 x 43 x 4 cm┋Weight: 7 kg┋5 Channels

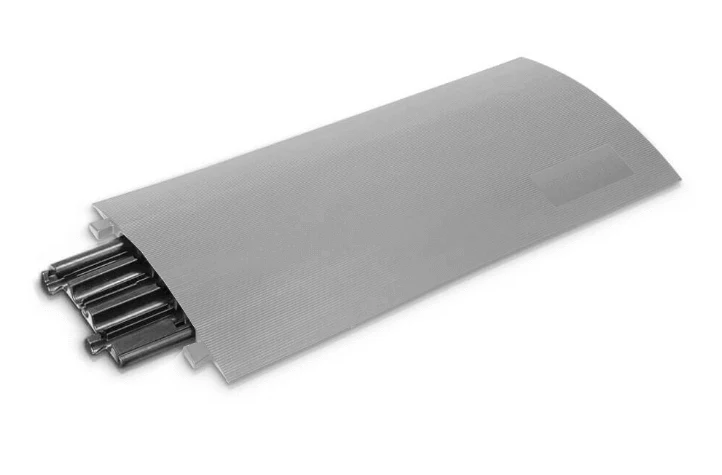

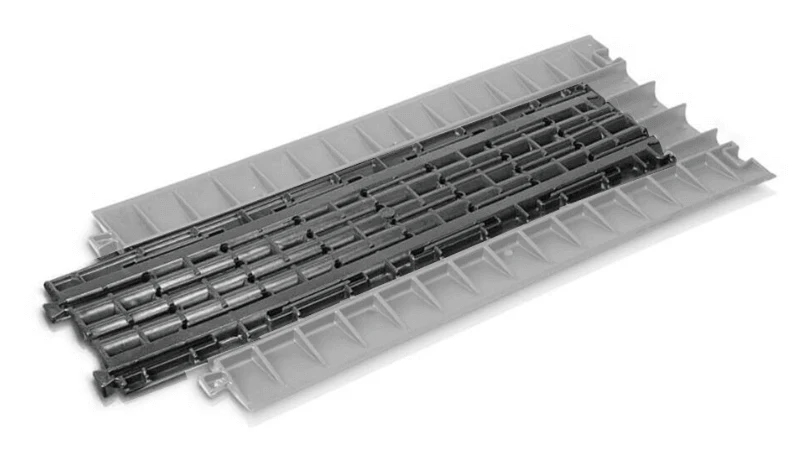

Attached to this optional 5-channel base, the Defender COMPACT drop-over cable protector 85100 transforms from a light-duty guard into a heavy-duty one with high load capacity to support trucks, forklifts, and other vehicles. The ribbed surface provides excellent traction while integrated connectors on the base and drop-over facilitate line up to form a rigid continuous protection system.

Applications include construction sites, carnivals, fairs, trade shows, exhibitions, warehouses, shopping malls, and music events

User Manual - Certificate

---

Features:

• Non-slip, overlaid cable protector made of black, recyclable polyurethane
• Fire-resistant, resistant to oil, acids, solvents, and petrol
• Reliable protection for cables and personnel for indoor and outdoor use
• Combined with 85100 for supporting higher loads such as forklifts and lifting trucks
• 5 channels: each 22 x 21mm
• Not suitable for vehicular traffic

Specifications [Combined with COMPACT cable protector 85100]:

• Type: 5 Channels
• No. of integrated connectors: 2
• Dimensions: 435 (W) x 806(L) x 37(H) mm
• Channel 1/2/3/4/5: 22(W)x21(H) mm
• Material: Polyurethane
• Max. load: for forklifts, lifting trucks
• Hardness range: 88 Shore ± 4 Shore
• Fire protection class: B2
• Temperature range: -30 to +60 °C
• Weight: 7 kg
• Special feature: DEKRA-certified
